Product Overview
P20 (AISI) / 1.2311 & 1.2738 (DIN) / 3Cr2Mo (GB) is a chromium-molybdenum-nickel plastic mold steel, supplied in the pre-hardened condition (typically 28–35 HRC) and ready for direct machining — no further heat treatment required.
JF Metals supplies P20/718 with uniform hardness throughout the cross-section, excellent polishability for mirror-finish molds, and good weldability for mold repair. Each heat is sampled, sealed, and tested for full traceability, with MTC / COA certificates provided.
Available in rounds, flats, and blocks, with saw cutting, milling, and precision grinding services to your finished dimensions.
✦ Key Features
- ▸ Pre-hardened 28–35 HRC, ready to machine
- ▸ Excellent polishability (mirror finish)
- ▸ Good weldability & repairability
- ▸ Uniform hardness through thick sections
- ▸ Full MTC / COA traceability
Key Parameters
Chemical Composition
| Standard | Grade | C | Si | Mn | Cr | Mo | Ni |
|---|---|---|---|---|---|---|---|
| AISI | P20 | 0.30/0.40 | 0.20/0.40 | 0.60/1.00 | 1.40/2.00 | 0.30/0.55 | — |
| DIN | 1.2311 | 0.35/0.40 | 0.30/0.50 | 1.40/1.60 | 1.80/2.10 | 0.15/0.25 | — |
| DIN | 1.2738 | 0.35/0.45 | 0.20/0.40 | 1.30/1.60 | 1.80/2.10 | 0.15/0.25 | 0.90/1.20 |
| GB/T | 3Cr2Mo | 0.28/0.40 | 0.20/0.80 | 0.60/1.00 | 1.40/2.00 | 0.30/0.55 | — |
* Data sourced from AISI / DIN EN ISO 4957 / GB/T 1299. For reference only.
* 718 (DIN 1.2738) is the nickel-alloyed upgrade of P20 with better hardenability and polishability.
* Final chemistry subject to Mill Test Certificate (MTC) of the shipped lot.
Typical Applications
Injection Molds
Plastic injection molding dies for consumer goods
Mirror-Finish Molds
Optical & transparent part molds (lenses, displays)
Die Casting Frames
Housings, enclosures, appliance parts
Mold Repair
Weldable for mold repair & modification
Stock & Services
📦 Stock & Forms
- ✓ Round bar: Φ20–500mm
- ✓ Flat bar / block: custom sizes
- ✓ Pre-hardened 28–35 HRC
- ✓ 718 (1.2738) Ni-alloyed also available
- ✓ Saw cutting & precision grinding
🚚 Lead Time & Docs
- ✓ MOQ: 1 piece / 500kg
- ✓ Stock: 3–7 working days
- ✓ Custom: 15–30 working days
- ✓ MTC / COA / SGS·BV (on request)
- ✓ Video factory tour available

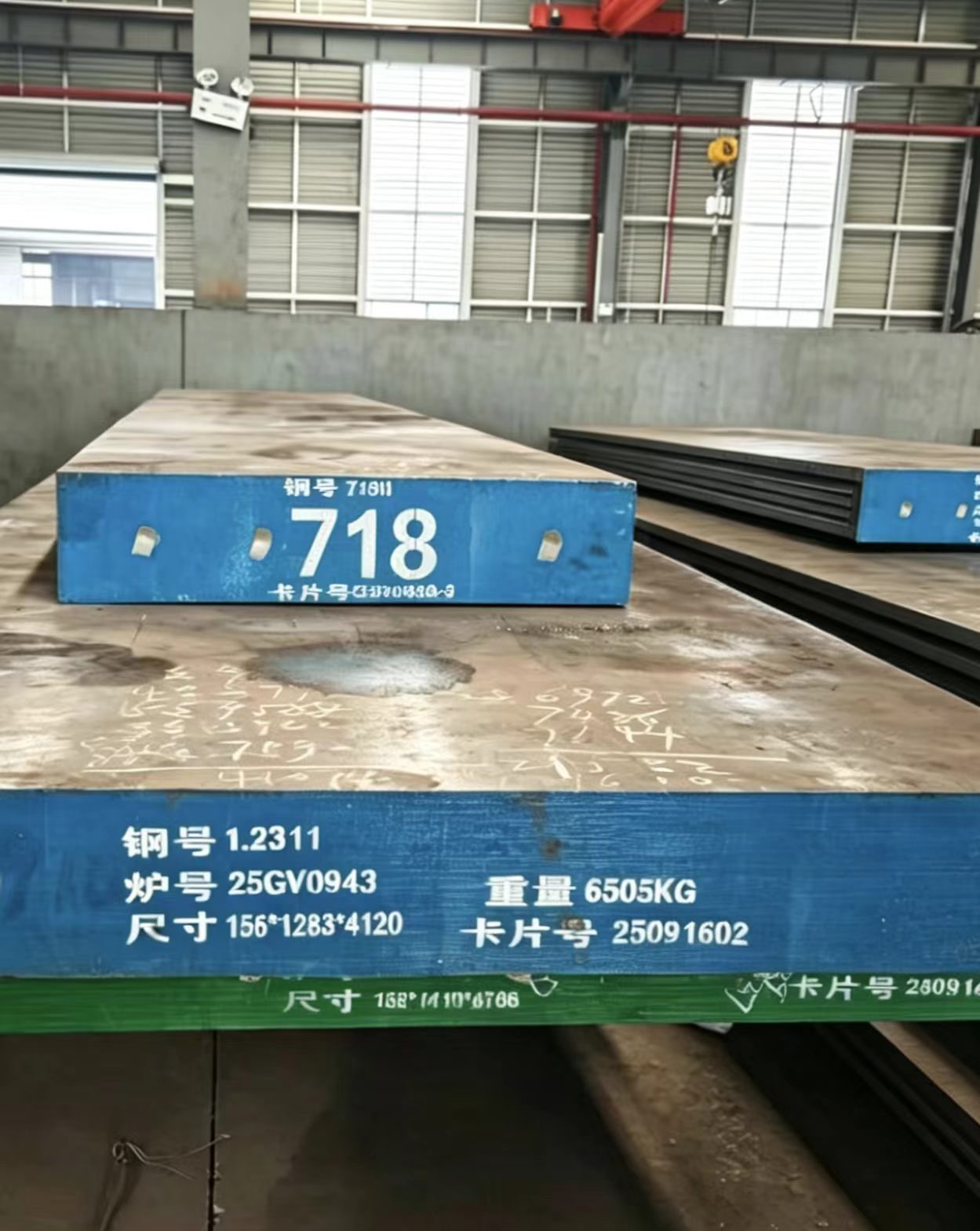

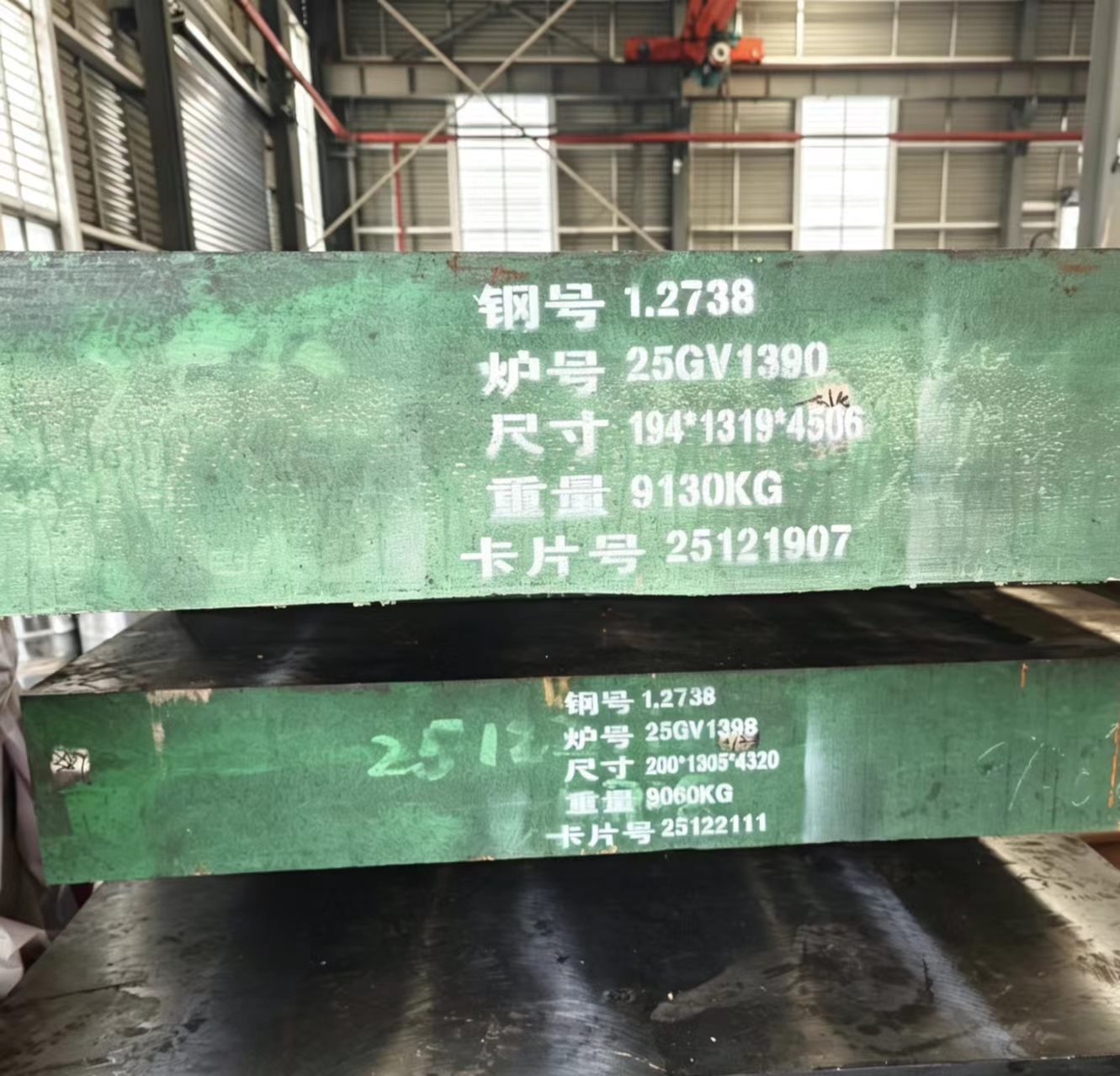

Product Gallery
* Product photos for reference. Actual surface finish & dimensions subject to the ordered specification.
